Kubota SK140 SK200 SK230 SK260 SK220 SK300 SK320 SK330 SK400

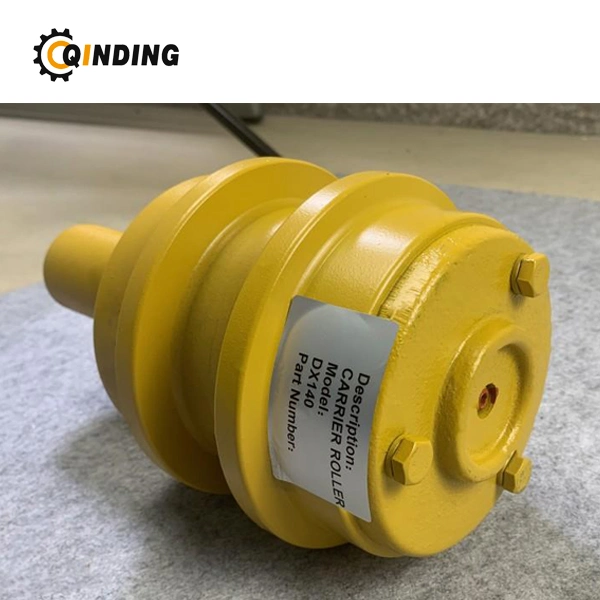

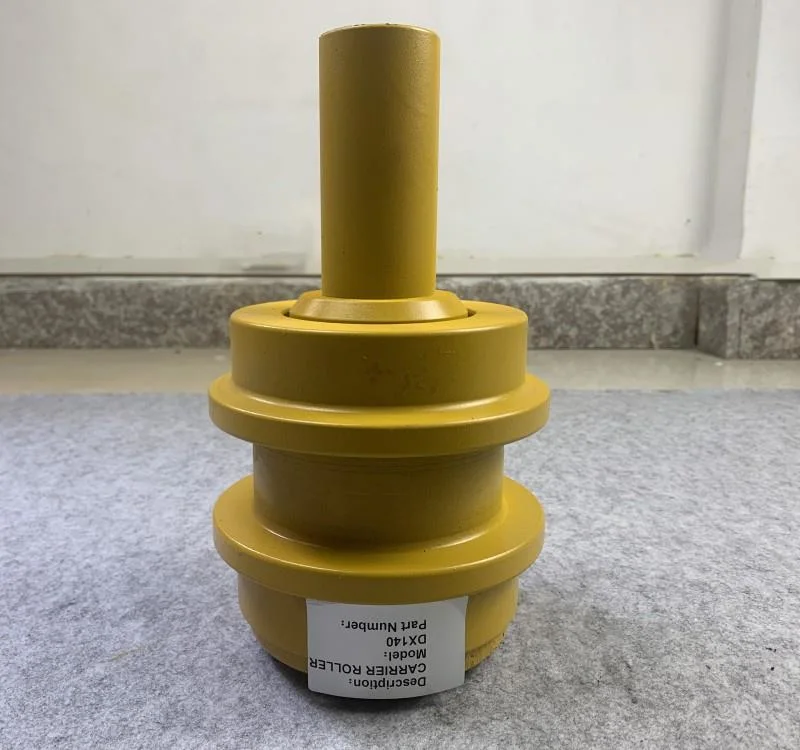

Excavator carrier roller top upper roller
Advantage of the Excavator and Bulldozer Carrier Roller, Top Roller and Upper Roller
The carrier roller use 50Mn steel, after free forging into work-piece by a 560KG air hammer, compactness of roller body further increased could reach 58-62, hardness could be thick to 0.5-0.8cm.
Technical parameters of the Excavator and Bulldozer Carrier Roller, Top Roller and Upper Roller
| Parame Code | A | E | B | C | D | P | H | L | M |
| DH220 | 287.5 | 176 | 84 | 50 | 149 | 125 | 50 | ф168 | 112 |
| EX100/EX120-1 | 186.5 | 120 | 66 | 0 | 96.5 | 110 | 35 | ф140 | 70.5 |
| EX200-1 | 220.5 | 150 | 80 | 0 | 113 | 124 | 35 | ф171 | 58 |
| EX200-2/3/5 | 239.5 | 166 | 100 | 0 | 121 | 124 | 35 | ф140 | 58 |
| EX300-1 | 219 | 170 | 100 | 0 | 119 | 124 | 35 | ф170 | 58 |
| EX300-2 | 218.5 | 166 | 100 | 0 | 120.5 | 124 | 35 | ф140 | 58 |
| HD250 | 203.5 | 140 | 0 | 0 | 106 | 100 | 0 | ф89 | 60.5 |
| PC60-5 | 197 | 120 | 50 | 0 | 102 | 110 | 0 | ф120 | 70 |
| PC60-7 | 242.5 | 164 | 42 | 0 | 125 | 110 | 42 | ф148 | 46 |
| PC100 | 197.5 | 120 | 0 | 0 | 103 | 110 | 40 | ф120 | 70.5 |
| PC100 | 197.5 | 120 | 55 | 0 | 103 | 110 | 40 | ф120 | 70.5 |
| PC200-7 | 241.5 | 164 | 80 | 40 | 123.5 | 68 | 35 | ф145 | 29 |
| PC300-7 | 322.5 | 200 | 100 | 60 | 156 | 90 | 55 | ф178 | 46.5 |
| PC400-7 | 329.5 | 206 | 105 | 70 | 162.5 | 90 | 55 | ф178 | 46.5 |
| SH60 | 123 | 108 | 45 | 15 | 97 | 100 | 0 | ф110 | 71 |
| SH120 | 192.5 | 128 | 65 | 0 | 104 | 120 | 0 | ф140 | 48 |
| SH200/SH280 | 247.5 | 175 | 80 | 40 | 129 | 140 | 0 | ф145 | 51 |
| THE MODELS FOR EXCAVATOR/BULLDOZER | ||||||||
| FOR HITACHI | ||||||||
| EX40-1 | EX40-2 | EX55 | EX60 | EX60-2 | EX60-3 | EX60-5 | EX70 | EX75 |
| EX100 | EX110 | EX120 | EX120-1 | EX120-2 | EX120-3 | EX120-5 | EX130-1 | EX200-1 |
| EX200-2 | EX200-3 | EX200-5 | EX220-3 | EX220-5 | EX270 | EX300 | EX300-1 | EX300-2 |
| EX300-3 | EX300-5 | EX300A | EX330 | EX370 | EX400-1 | EX400-2 | EX400-3 | EX400-5 |
| EX450 | ZAX30 | ZAX55 | ZAX200 | ZAX200-2 | ZAX330 | ZAX450-1 | ZAX450-3 | ZAX450-5 |
| FOR KOMATSU | ||||||||
| PC20-7 | PC30 | PC30-3 | PC30-5 | PC30-6 | PC40-7 | PC45 | PC45-2 | PC55 |
| PC120-6 | PC130 | PC130-7 | PC200 | PC200-1 | PC200-3 | PC200-5 | PC200-6 | PC200-7 |
| PC200-8 | PC210-6 | PC220-1 | PC220-3 | PC220-6 | PC220-7 | PC220-8 | PC270-7 | PC202B |
| PC220LC-6 | PC220LC-8 | PC240 | PC300 | PC300-3 | PC300-5 | PC300-6 | PC300-7 | PC300-7K |
| PC300LC-7 | PC350-6/7 | PC400 | PC400-3 | PC400-5 | PC400-6 | PC400lc-7 | PC450-6 | PC450-7 |
| PC600 | PC650 | PC750 | PC800 | PC1100 | PC1250 | PC2000 | ||
| D20 | D31 | D50 | D60 | D61 | D61PX | D65A | D65P | D64P-12 |
| D80 | D85 | D155 | D275 | D355 | ||||
| FOR CATERPILLAR | ||||||||
| E200B | E200-5 | E320D | E215 | E320DL | E324D | E324DL | E329DL | E300L |
| E320S | E320 | E320DL | E240 | E120-1 | E311 | E312B | E320BL | E345 |
| E324 | E140 | E300B | E330C | E120 | E70 | E322C | E322B | E325 |
| E325L | E330 | E450 | CAT225 | CAT312B | CAT315 | CAT320 | CAT320C | CAT320BL |
| CAT330 | CAT322 | CAT245 | CAT325 | CAT320L | CAT973 | |||
| D3 | D3C | D4 | D4D | D4H | D5M | D5H | D6 | D6D |
| D6M | D6R | D6T | D7 | D7H | D7R | D8 | D8N | D8R |
| D9R | D9N | D9G | D10 | |||||
| FOR KOBELCO | ||||||||
| SK120-6 | SK120-5 | SK210-8 | SK210LC-8 | SK220 | SK220-1 | SK220-3 | SK220-5/6 | SK200 |
| SK200 | SK200 | SK200-3 | SK200-6 | SK200-8 | SK200-5/6 | SK60 | SK290 | SK100 |
| SK230 | SK250 | SK250-8 | SK260LC-8 | SK300 | SK300-2 | SK300-4 | SK310 | SK320 |
| SK330-8 | SK330 | SK350LC-8 | SK235SR | SK450 | SK480 | SK30-6 | ||
| FOR SUMITOMO | ||||||||
| SH120 | SH120-3 | SH200 | SH210-5 | SH200 | SH220-3 | SH220-5/7 | SH290-3 | SH350-5/7 |
| SH220 | SH280 | SH290-7 | SH260 | SH300 | SH300-3 | SH300-5 | SH350 | SH60 |
| FOR VOLVO | ||||||||
| EC160C | EC160D | EC180B | EC180C | EC180D | EC210 | EC210 | EC210B | EC240B |
| EC290 | EC290B | EC240 | EC55 | EC360 | EC360B | EC380D | EC460 | EC460B |
Packing & Shipping of the excacator Carrier Roller, Top Roller and Upper Roller
 | Packing 2.Big parts nude packing in container 3.Packing as customer demands. Delivery 1.International Courier, Such as DHL, TNT,UPS or Fedex. 2.By air/By sea Products fully stocked, timely and efficient delivery. |
  | |
>> Our Service
Pre-sale Service
Excavator spare parts in full-scale are available;
100% quality assurance, develop and manufacture follow original ones;
Quick response within 24 hours ;
Sale Service
Small order allowed;
Reasonable Price and timely delivery;
Original packing, neutral packing or customized packing;
After -Sales Service
Positive customer feedback from abroad market;
Excellent After-sales service.
QINDING Manufactures a wide range of Undercarriage Parts & Components including:
- Track Chains (Standard, Heavy Duty & "PPR" Series)
- Forged and Cast Drive Segments
- Drive Sprocket
- Idlers
- Lower Rollers
- Carrier Rollers
- Track Tensioning Assemblies and Componets
- Heavy Duty Forestry Roller and Idlers
Kubota SK140 SK200 SK230 SK260 SK220 SK300 SK320 SK330 SK400
Excavator carrier roller top upper roller
