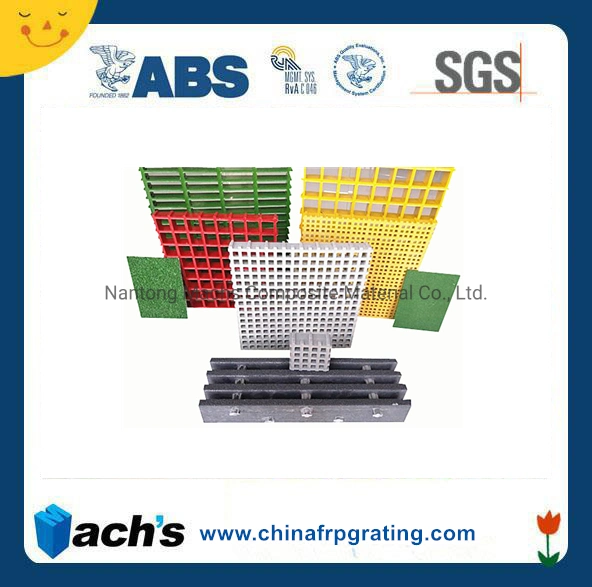

We offer a variety of fiberglass grating, including molded grating, pultruded grating, structural shapes, handrails, platforms, and other products.
MACHS Fiberglass Grating provides the following advantages:SafetyFiberglass grating is recommended when corrosion protection and safety are your goal.Stability Expansion and contraction is 24% and 50% less than aluminum and steel, providing greater dimensional stability.Durability Superior durability to Stainless Steel, Aluminum, and Galvanized Gratings, especially in highly corrosive environments.Strength 50% higher tensile strength than hot rolled steel and better impact resistance.Countless Applications Our FRP grating products are ideal for applications such as catwalks, flooring, platforms, and shelves. FRP grating is non-conductive and non- magnetic, easy to install and offers optimal performance for over 15 years without maintenance.
|Specs for FRP Grating|
|Item No||Max Panel Size(mm)||Mesh(mm)||Thickness(mm)||Weight(kg/M2)|

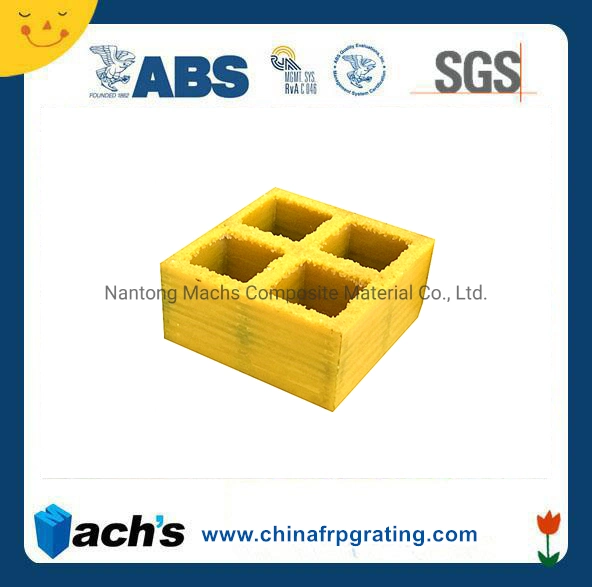

Adaptability Structural shapes can be designed to suit from molded grating. Molded grating is in demand for its light weight, great strength, electric insulation qualities, and corrosion resistance. Choice of Raw MaterialsQualified raw materials ensure the excellent quality of MACHS FRP grating. All of the raw materials are from carefully selected advanced suppliers.
|Vinyl ester||Superior corrosion resistance and fire retardant flame spread rating ASTM E84 Class 1,25 or less operation temperature-50°C~110°C.||Such gratings can be used in the environments with serious corrosion|
|High flame resistant vinyl ester||Superior corrosion resistance and enhanced fore retardant flame spread rating ASTM E84 Class 1,10 or less operation temperature-50°C~110°C.Such grating has passed assessment from ABS(American Bureau of Shipping).||Such gratings can be used in the environments with serious corrosion requiring better flame resistance.|
|Iso-phthalic Polyester resin||Industrial grade corrosion resistance and fire retardant flame spread rating ASTM E84 Class 1,25 or less operation temperature-50°C~105°C.||Such gratings can be used in the environments of middle concentration inorganic acid, inorganic alkali, etc.|
|Ortho-phthalic polyester resin||Moderate corrosion resistance and fire retanrdant flame spread rating ASTM E84 Class 1,25 or less operation temperature50°C-100°C.||Such gratings are perfect for use in water/wastewater or air-aging application light industrial applications and in the wave zone areas of offshore platforms where the environment is moderate Although Type O is the least chemical resistant resin it still offers superior performance to traditional flooring products such as steel aluminum and wood and is the most economical resin available.|
