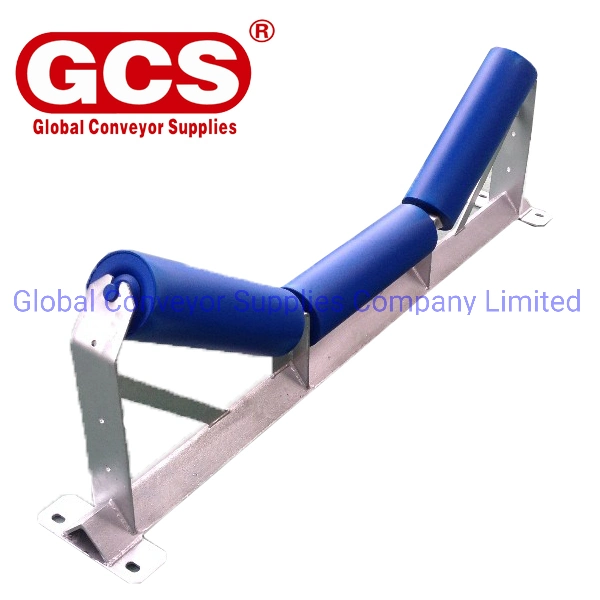

Carbon steel idler set grooved idler for coal mine has D89 108 133 159 165 194, etc. to support customization

Product Description Conveyor Friction Training Roller IdlerProduct ApplicationOur products are widely used in thermal power generation, harbours, cement plants, metallurgy and as well as the light duty conveying devices for industries.SPECIFICATIONS Diameterφ89, φ102, φ108, φ114, φ127, φ133, &ph

Featured Products

for The Coal Mine Carbon Steel Roller Group Groove Type Roller Has D89 108 133 159 165 194 and Other Support Customization


Product Description

 Conveyor Friction Training Roller Idler

Product Application

Our products are widely used in thermal power generation, harbours, cement plants, metallurgy and as well as the light duty conveying devices for industries.
SPECIFICATIONS
Diameter
φ89, φ102, φ108, φ114, φ127, φ133, φ139, φ152, φ159, φ165,  φ194
Length
customized
Tube
Q235(GB), Q345(GB), welded with DIN2394 standed
Shaft

A3 and 45# steel(GB)
Bearing
Single & Double Row Deep Groove Ball Bearing 2RS&ZZ with C3 clearance
Bearing Housing/Seat
Cold press working fit ISO M7 accuracy
Deep Press steel with raw material fit DIN 1623-1624 standard
Lubricating Oil
Grade 2 or 3 long-lasting lithium greasae
Welding
Mixed gas shielded arc welding end
Painting
Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting


for The Coal Mine Carbon Steel Roller Group Groove Type Roller Has D89 108 133 159 165 194 and Other Support Customization



for The Coal Mine Carbon Steel Roller Group Groove Type Roller Has D89 108 133 159 165 194 and Other Support Customization
for The Coal Mine Carbon Steel Roller Group Groove Type Roller Has D89 108 133 159 165 194 and Other Support Customization



Main Features

1) Solid design, suitable for heavy lifting.
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components/materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing  is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending on usage.
10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments


Related Products
for The Coal Mine Carbon Steel Roller Group Groove Type Roller Has D89 108 133 159 165 194 and Other Support Customization



Testing Machines
for The Coal Mine Carbon Steel Roller Group Groove Type Roller Has D89 108 133 159 165 194 and Other Support Customization

Certifications
for The Coal Mine Carbon Steel Roller Group Groove Type Roller Has D89 108 133 159 165 194 and Other Support Customization

Our Service
for The Coal Mine Carbon Steel Roller Group Groove Type Roller Has D89 108 133 159 165 194 and Other Support Customization
Our Company
for The Coal Mine Carbon Steel Roller Group Groove Type Roller Has D89 108 133 159 165 194 and Other Support Customization

Global Conveyor Supplies Co., Ltd.

Established in 1995; Land area = 20,000 m2; Staff= 120 persons.

Located in Huizhou, Guangdong Province, next to Shenzhen city.

GCS, RKM is a registered trademark in China.

GCS enjoys a renowned reputation and our products are marketed globally in South-East Asia, Middle East, Africa, Australia, Europe, Hong Kong and many other countries.

Packing & Delivery
for The Coal Mine Carbon Steel Roller Group Groove Type Roller Has D89 108 133 159 165 194 and Other Support Customization

FAQ


Q: Are you trading company or manufacturer ?

A: We are factory.


Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
