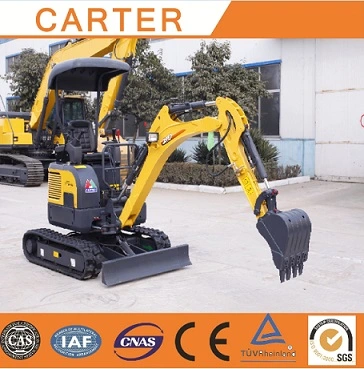

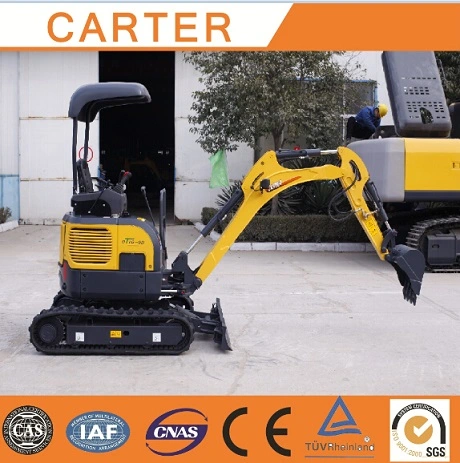

CT16- 9bp canopy & retractable chassis & rubber track mini excavator

SPECIFICATIONS:Boom length:  1829mmArm length:950mmMax.digging depth: 2033mmMax.digging height:3281mmMax.digging distance:3941mmMax.digging radius at ground level:3878mmMax.dumping height: 2393mmMax.vertical digging depth: 1605mmMax.swing radius of work equipment: 1625mmFuel tank: 28LCooling system: 8LEngine oil: 4.4LHydrau

Featured Products

Boom length:  1829mm
Arm length:950mm
Max.digging depth: 2033mm
Max.digging height:3281mm
Max.digging distance:3941mm
Max.digging radius at ground level:3878mm
Max.dumping height: 2393mm
Max.vertical digging depth: 1605mm
Max.swing radius of work equipment: 1625mm

Fuel tank: 28L
Cooling system: 8L
Engine oil: 4.4L
Hydrauli oil tank(tank oil level):17.5L
Hydrauli oil tank(hydraulic system):24L
 Travel System
ModelYanmar 3TNV70Travel motorsEaton, USA
TypeDirect injection, water cooled, natural intakeSupport roller quantities2×3
Carrier roller quantities2×1
No. of cylinder3Travel shoesNo
Bore and stroke70x74(mm)Travel speed2.7/5.0(km/h)
Displacement0.854LDrawbar pulling force11.7kN
Power output10kw/2200rpmGradeability58%(300)
Max. torque50N.m/2000rpmGround clearance160mm
Hydraulic SystemCab & Electrical System
PumpCASAPPA, ItalyCabAll-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat, Front Window can be opened and slided; adjustable Seat
TypeAxial-piston pump+gear pump
Max. discharge flow2x20+15.1(L/min)
Max. discharge pressure
Boom, arm and bucket17 MPaVoltage12V
Travel circuit12 MPaBatteries1X12V
Swing circuit9 MPaBattery capacity60Ah
Control circuit3 MPaBoom, Arm & Bucket
Pilot control pumpGear typeBoom cylinderΦ60xΦ35xS440-L770
Main control valvesHydro Control, ItalyArm cylinderΦ60xΦ35xS330-L600
Oil coolerAir cooled typeBucket cylinderΦ55xΦ30xS300-L560
Swing SystemRefilling Capacity & lubrication
Swing motorEaton, USAFuel tank28L
Swing motor typeAxial-piston motorCooling system8L
BrakeNoEngine oil4.4L
Parking brakeNoHydraulic oil tank17.5L Tank Oil Level
Swing speed8.8 r/min24L Hydraulic System
TypeBackhoe bucket
Bucket capacity0.04m3 (SAE)Bucket Capacity scope0.028-0.095m3
Number of bucket teeth3 or 4Bucket width450 mm
Working ranges
Boom length1829mArm length950mm
AMax. digging height3281mmBMax. dumping height2393mm
CMax. digging depth2033mmDMax. vertical digging depth1605mm
EMax. digging distance3941mmFMax. digging radius at ground level3878mm
GMin swing radius of work equipment1625mm
ABucket digging force11.2 KNBArm digging force9.1 KN
Overall Dimensions
AOverall length3694mmITrack grounding length1210mm
BGround contact length(Transportation)2366mmJTrack length1588mm
COverall height(to top of boom)1157mmKTrack gauge(extension 1090mm)760mm
DOverall width1000mmLTrack width(extension 1320mm)990mm
EOverall height(to top of cab)2411mmMTrack Shoe width230mm
FCounter weight ground clearance207mmOBonnet height1222mm
GMin. Ground clearance160mmPRevolving frame width1000mm
HTail swing radius660mmQDistance from swing center to tail665mm
Operating Weight and Ground Pressure
Operating weight1700kg(with canopy)Ground pressure28 KP
CT16-9bp with Canopy&Retractable Chassis& Rubber Tracks Mini ExcavatorCT16-9bp with Canopy&Retractable Chassis& Rubber Tracks Mini ExcavatorCT16-9bp with Canopy&Retractable Chassis& Rubber Tracks Mini ExcavatorCT16-9bp with Canopy&Retractable Chassis& Rubber Tracks Mini ExcavatorCT16-9bp with Canopy&Retractable Chassis& Rubber Tracks Mini Excavator
