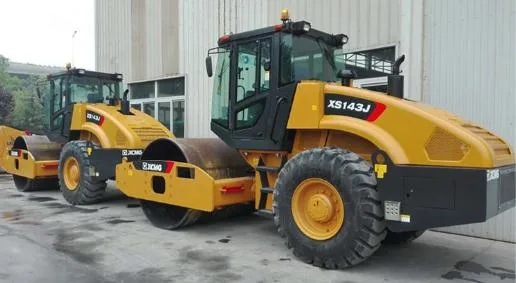

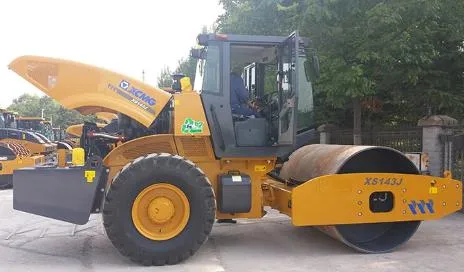

14T Road Compactor Single Drum Vibratory Roller
Quick Details
Power(W):103kw
Travel Speed:0-11.7 kw
Warranty:1 year
Applicable Industries:Construction works
After Warranty Service:Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:Philippines, Peru, Indonesia, Algeria, Bangladesh, Uzbekistan
Showroom Location:Philippines, Indonesia, Algeria, Bangladesh, Uzbekistan
Condition:New
Type:Single Drum Roller
Grade Ability:30%
Place of Origin:Jiangsu, China
Dimension(L*W*H):6010*2300*3200 mm
Weight:14 Ton, 14000kg
Certification:ISO CE
After-sales Service Provided:Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Hydraulic Pump Brand:Bosch Rexroth
Hydraulic Valve Brand:Bosch Rexroth
Engine Brand:YUCHAI
UNIQUE SELLING POINT:Energy saving
Product name:Single Drum Roller
Drive Type:Mechanical Drive
Exciting force:274/137 kN
Wheel Base:3040mm
Drum width:2130mm
Min.turning radius:6800mm
Vibratory diameter:1523mm
| Type | Unit | XS143J |
| Working mass | kg | 14000 |
| Distribution mass on front drum | kg | 7000 |
| Static linear load | N/cm | 322 |
| Driving speed | km/h | |
| I speed | 2.7 | |
| II speed | 4.8 | |
| III speed | 10.5 | |
| Theoretical gradeability | % | 30 |
| Min,Outer turning radius | mm | 6800 |
| Steering angle | ±30° | |
| Swinging angle | ±11° | |
| Vibrating frequency | Hz | 28 |
| Nominal amplitude(High/Low) | mm | 1.9/0.95 |
| Centrifugal force High/Low Amp | K N | 274/137 |
| Engine model | D4114(Shangchai) | |
| Type | water-cooling, pressurized | |
| Max. Power | kW | 92/2200r/min |
| Rated oil wear | g/ kW .h | 230 |
| Hydraulic tank capacity | L | 170 |
| Fuel tank capacity | L | 180 |
